THE LULWORTH
The Lulworth is a most spectacular and contemporary log cabin with alfresco relaxation area. It combines an exceptional indoor space with a practical outdoor shelter, perfect either as shade form the sun or to escape the summer showers, for you or your outdoor belongings. The full length toughened glass windows and doors take maximum advantage of the light available making it an ideal place to spend those lazy summer days.
Double doors and 2x top-opening windows are supplied as standard.

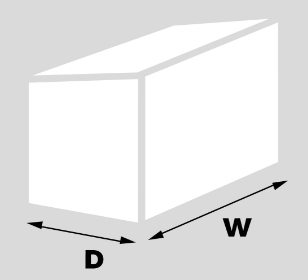

DIMENSIONS EXPLAINED
x :This is the cabin floor size. N.B. please bear in mind overall log length and roof overhang, more details can be found below
y :Ridge height, highest point of the roof externally
z :Eaves height - where the roof starts to slope upwards
There are 4 standard sizes available, imperial sizes given are nominal, metric sizes are the external floor size:
| 16’ x 10’ | (456cm x 276cm) | X=276cm | Y=244cm | Z=219cm |
| 18’ x 10’ | (516cm x 276cm) | X=276cm | Y=244cm | Z=219cm |
| 16’ x 12’ | (456cm x 336cm) | X=336cm | Y=244cm | Z=219cm |
| 18’ x 12’ | (516cm x 336cm) | X=336cm | Y=244cm | Z=219cm |
N.B. Interlocking cabin sizing:
The overall log length is 19cm more than the external floor size (above)
The internal floor size is 9cm less than the external floor depth and 249 less on the width due to 235cm shelter width
The overall roof size is 39cm wider and longer than the external floor size
Please bear in mind roof overhang and guttering (if ordered) when measuring up and building slab or concrete base
Wall timbers – 44mm double tongue & groove (untreated)
Floor construction – 18mm tongue & groove (untreated)
Floor joists – 57mm x 44mm (tanalised)
Doors size – 188cm x 76cm x 2 doors
Doors aperture – 186cm x 150cm
Window size – 137cm x 64cm
Roof boards - 18mm tongue & groove (untreated)
Roof joists – 115mm x 42mm
Roof felt – standard 20kg green mineral felt
Glazing – 4mm toughened glass
Internal wall height (lowest point) = 212cm
Internal height to the underside of roof truss = 234cm
Cabin Installation
The cabin prices are delivered only but you can pay extra for installation.
Felt roof shingles
Up-grade from standard roof felt to shingle tiles, 4 coulours to choose from - Grey, Brown, Red or Green
Guttering
Add black guttering and down-pipe(s) to your cabin. N.B. Supplied only, not fitted.
Toughened Glass
Upgrade from standard 3mm galss to toughened 4mm glass in the windows and doors.
Double Glazing
Add double glazing to the windows and glazed doors.
Front Decking Verandah
Add this attractive decking verandah to the front of your cabin.
| The website price includes VAT and delivery to all addresses in England, Wales & Southern Scotland except for the postcodes below*. If installation is ordered, the installer usually follows-on 1-2 weeks after the building has been delivered. | |||
|
*We do not deliver to the following postcodes but may be able to depending on location and cabin size, please email / phone to enquire - Engalnd - DT, EX, PL, TQ, TR Wales - SA Scotland - AB, DD, FK, IV, KW, KY, PA, PH |
