LOTUS GARAGE ANTHRACITE
The Lotus Anthracite Garage is a great alternative to a timber or concrete garage. It comes in one width only, 10ft, and is available in 3 lengths; 15ft, 19ft and 23ft. A pair of large double-hinged doors are on the 10ft gable end and a small personnel door can be fitted on either side.

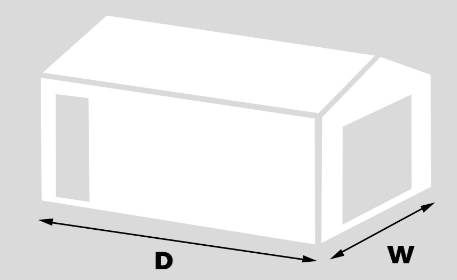

x :Overall shed width including roof overhang (roof overhang is 6cm on both sides therefore shed base size is approx. 12cm less than roof size)
y :Ridge height excluding foundation kit or timber floor kit (if ordered) these add 5cm to overall height
z :Eaves height - where the roof starts to slope upwards, excluding foundation kit or timber floor kit (if ordered)
|10' x 15'||307cm x 464cm||X=307cm||Y=225cm||Z=200cm|
|10' x 19'||307cm x 589cm||X=307cm||Y=225cm||Z=200cm|
|10' x 23'||307cm x 714cm||X=307cm||Y=225cm||Z=200cm|
N.B. the above measurements are the ROOF measurements; the shed width and depth is approx. 12cm less.
Double doors opening – 200cm high x 235cm wide
Single side door opening - 197cm high x 67cm wide
Wall & roof panels – 0.3mm thick hot dipped galvanised steel
Door panels - 0.3mm thick hot dipped galvanised steel
Wall bracing, centre and top rail – 30 x 14mm galvanised steel
Base rail - 30 x 20mm galvanised steel
Centre roof support – 105 x 60mm galvanised steel
Gables – Have ventilation gaps
15 year manufacturer’s warranty
Choose to have your metal shed installed on to your prepared base
Foundation Kit (Lotus)
Hot dipped galvanised base frame assembles to the exact size of your shed. Assemble and lie onto a firm, compacted, level area and attach shed to frame. This can then be boarded out with plywood or flooded with concrete to provide a level, solid floor.
Hilti Screws and Drill Bit
These fixings secure your shed to a slab base or concreted area. They fit through pre-drilled holes in shed's base rail. Kit supplied with masonry drill bit.
Wooden Floor Kit
Comprises of pressure-impregnated treated tongue & groove boards and bearers. Includes nails for assembly and screws to screw through base rail of the shed into the wooden floor boards. Ideally the floor kit would be assembled on a flat, level slabbed or concreted area.
|The website price includes VAT and delivery to all addresses in England & Wales. Delivery is also included to addresses in Scotland within the Glasgow and Edinburgh postcode areas. All other addresses in Scotland carry a delivery surcharge; this is price on application, please phone to discuss. The metal and plastic sheds are delivered flat-packed in a box / boxes. If installation is ordered, the installer usually follows-on after the shed has been delivered.|
What is the delivery lead time?
The current lead time is up to 2-3 weeks delivered and an additional week if fitting is required.
What is included in the price?
All prices include VAT and delivery to all areas of mainland England, Wales and Scotland flat packed in a box/boxes. Postcodes in Scotland outside Glasgow and Edinburgh postcodes will be subject to a shipping charge.
What size box does my metal shed come in?
The metal sheds are packed in cardboard boxes and measure approximately 180cm x 80cm x 10cm. The boxes can be quite heavy, larger sheds are packed in two or more boxes. Foundation kits are packaged separately.
Can you provide an installation service?
Yes we can. Prices start from around £150 for smaller metal sheds and increase depending on the size of the shed and if any optional extras are required.
What base do i need for my metal shed?
The ideal base is flat, level slabs or concrete. The shed can be fixed down to this using the Hilti screws or you could use a foundation kit or wooden floor kit (see optional extras). If the Hilti-screws are used to fix the building to your slabs, a mastic sealant is recommended to stop water ingress under the shed walls.
Are the shed dimensions internal or external?
The dimensions given are nominal. For more accurate measurements, please refer to each individual product. The base size (footprint) is given along with the overall size including the roof overhang.
What are the payment terms for metal sheds?
The shed, any accessories and installation need to be paid for in full at time of order.
What guarantee do i get with my building?
A 15 year non-perforation rust guarantee. Door glides and plastic fittings are not covered by the guarantee.
